EMI Absorber WAM

EMI Absorber WAM

30, 50, 70, 100

Absorbs EMI and RFI noise rather than reflecting. Non-conductive therefore safe to use in an assembly on PCBs.

Features...

  • Non-conductive, wave absorbing, reduces EMI and RF noise
  • High performance & permeability, polymer filled with magnetic particles eliminating High Frequency EMI.

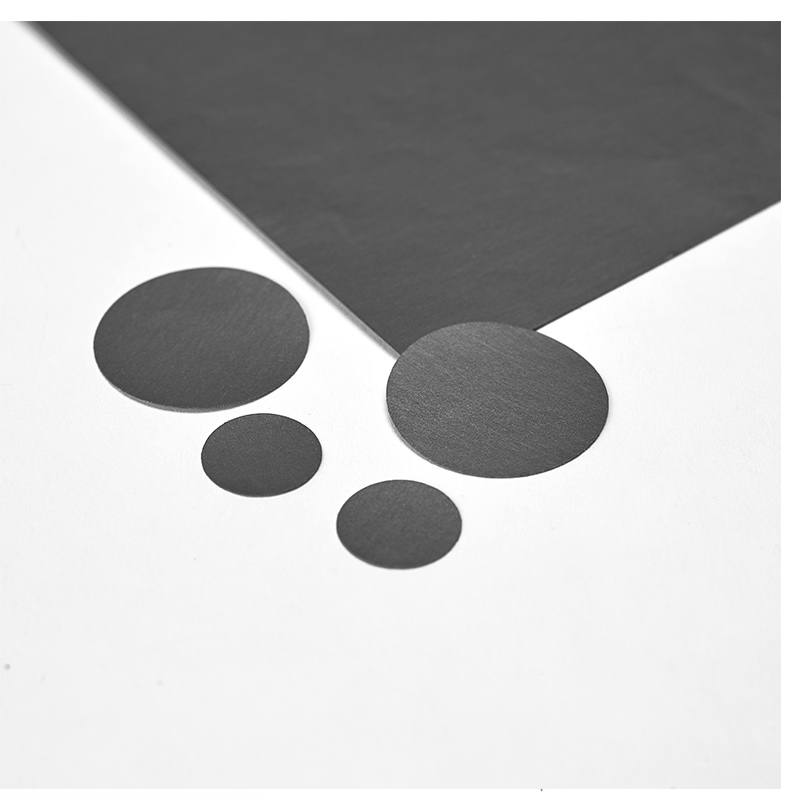

  • Thicknesses range from 0.1 - 1.0mm in sheet form, with or without PSA
  • Accurate conversion into gaskets.
  • Non-conductive, can be used safely in PCB applications.

Applications...

Electronic shielding of wiring & high-end electronic products like:

  • Position directly onto noisy RF IC’s or attach to specific PCB areas.
  • Fix inside Board Level Shields or enclosures to improve shielding.
  • Wrap around cables or position on Flexible Flat Cables and Flexible Printed Circuits to reduce EMI noise.
View Datasheet View Product Data
Make An Enquiry

Product Data...

Properties Test Method Unit EMI Absorber WAM-30, 50, 70, 100
Absorber Sheet - - Polymer
Tensile Strength ATM-D412 Mpa 4.6
Relative µ’ 1MHz - 30, 50, 70, 100
Operating Temp EM344 ◦C -25 to 85
Surface Resistance Typical Ω 1.6x105
Gravity (±0.5) ASTM-D792 g/cc 3.05
Apply Frequency Typical GHz 0.5 to 8.0
Dielectric Strength (DC) 5mm (0.1mA/1mA Leakage) V 400
Thermal Conductivity ASTM-D5470 W/mk 0.6
Adhesion Strength ASTM-D1000 Kgf/inch >1.0
Thickness (±10%) ASTM-D374 mm 0.1 to 1.0
Flame Retardant UL94 - V0
ROHS - - ROHS Compliance

Notes:

  1. Customised shapes are available;
  2. The above performance data is tested in an environment of 70% humidity, temperature 25°C
  3. This data is intended for reference purposes only. It is recommended that the material is tested to fully evaluate its performance ensuring it is fit for purpose
