Flexible Ferrite

Flexible Ferrite

F-01 to F-06

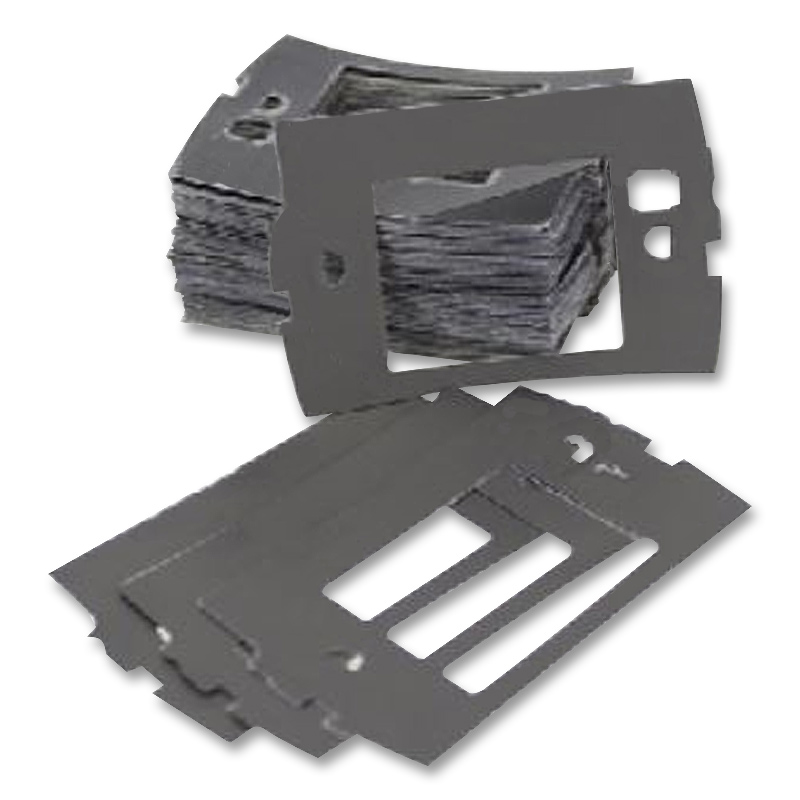

Flexible Ferrite is designed to be a flux conditioning product for applications such as NFC communications on card reader antennas.

Features...

  • Flexible ferrite sheets for 13.56MHz Near-field Communication (NFC), Radio-frequency Identification (RFID) application & wireless charging applications.
  • Thin, high permeability sintered ferrite with adhesive tape.
  • Standard thicknesses of 0.05mm, 0.06mm 0.08mm, 0.10mm, 0.15mm and 0.20mm.
  • Custom sizes and thicknesses available upon request.
  • Operating temperature -40ºC to 85ºC.
  • RoHS compliant.

Applications...

  • NFC antennas for mobile phones.
  • NFC antennas for automobile applications.
  • NFC or RFID antennas for security & access control systems.
  • Wireless charging for mobile phones and battery powered handheld electronic devices.
  • Improved read distance on NFC or RFID devices.
  • EMI suppression for Integrated Circuits.
View Datasheet View Product Data
Make An Enquiry

Product Data...

Properties F-01 F-02 F-03 F-04 F-05 F-06
Cover Film (mm) 0.01 0.01 0.01 0.02 0.02 0.02
Ferrite (mm) 0.05 0.06 0.08 0.10 0.15 0.2
Adhesive Tape (mm) 0.01 0.01 0.01 0.02 0.02 0.02
Total Thickness (mm) 0.07 0.08 0.1 0.14 0.19 0.24
Product Dimension (mm) 115 x 70 115 x 708 115 x 70 115 x 70 115 x 70 115 x 70

Notes:

  1. Customised shapes are available;
  2. The above performance data is tested in an environment of 70% humidity, temperature 25°C
  3. This data is intended for reference purposes only. It is recommended that the material is tested to fully evaluate its performance ensuring it is fit for purpose
